MacBook Pro Q&A - Published June 9, 2007
To be notified of new Q&As, sign up for EveryMac.com's bimonthly email list.
What is the difference between the MacBook Pro Core 2 Duo "Santa Rosa" models and the MacBook Pro "Core 2 Duo" models that they replaced?
Please note that all systems mentioned in this Q&A have been discontinued. The MacBook Pro Core 2 Duo "Mid-2007/Santa Rosa" models were replaced by the MacBook Pro Core 2 Duo "Early 2008/Penryn" series on February 26, 2008.

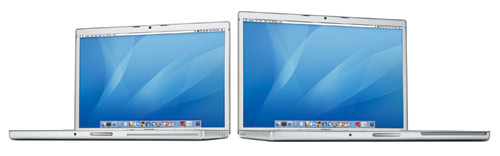

Externally, it would be unlikely for one to immediately notice a difference between the MacBook Pro Core 2 Duo Santa Rosa models -- the MacBook Pro "Core 2 Duo" 2.2 15" (Santa Rosa), "Core 2 Duo" 2.4 15" (Santa Rosa), and "Core 2 Duo" 2.4 17" (Santa Rosa) -- and their predecessors as each share identical cases. The 15-Inch "Santa Rosa" models weigh slightly less (5.4 pounds compared to 5.6 pounds) than the replaced systems, but one would have to be incredibly perceptive to notice such a minute difference.
Photo Credit: Apple, Inc.
With a 15-Inch "Santa Rosa" model and a 15-Inch model from the previous series side-by-side, however, one likely would notice that the "Santa Rosa" systems have a brighter "mercury-free power-efficient LED-backlit" 15.4" widescreen 1440x900 TFT active-matrix display. The 17-Inch "Santa Rosa" model has the same 17" widescreen CCFL-backlit 1680x1050 TFT active-matrix display as its predecessor, although a higher-resolution 1920x1200 display also is available by custom configuration.
All connectivity effectively is the same, with an ExpressCard/34 slot, AirPort Extreme (although the "Santa Rosa" models have 802.11n enabled by default), Bluetooth 2.0+EDR, Gigabit Ethernet, FireWire "400" port, Firewire "800" port, two USB 2.0 ports (three on the 17-Inch system), optical digital audio in/out, and DVI out. The "Santa Rosa" models also share the same fiber-optic-based "ambient light sensor" that adjusts keyboard illumination and screen brightness, "scrolling TrackPad", "MagSafe" power connector, integrated iSight video camera, and included Apple Remote.
Internally, the differences are more substantial. The "Santa Rosa" models use a more advanced architecture with a faster frontside bus (800 MHz compared to 667 MHz), additional RAM capacity (4 GB instead of 3 GB), a faster graphics processor (NVIDIA GeForce 8600M GT instead of the ATI Mobility Radeon X1600), and superior power management (including a dynamically adjustable frontside bus, which when combined with the backlit LED display on 15-inch models results in an extra hour of estimated battery life and an additional 15 minutes on the 17-inch system). The 15-Inch "Santa Rosa" systems also have a slightly faster dual-layer SuperDrive (8X compared to 6X).
For your convenience, the major differences between the MacBook Pro Core 2 Duo "Santa Rosa" model and the configuration that each immediately replaced are summarized below. Please refer to the specs page for the model of interest for complete details.
| MacBook Pro: | Core 2 Duo 2.16 15" | Core 2 Duo Santa Rosa 2.2 15" |
|---|---|---|
| Processor Type: | 2.16 GHz "Core 2 Duo" (T7400) | 2.2 GHz "Core 2 Duo" (T7500) |
| Frontside Bus: | 667 MHz | 800 MHz |
| Standard RAM: | 1 GB | 2 GB |
| Maximum RAM: | 3 GB | 4 GB |
| Video Type: | ATI Mobility Radeon X1600 | NVIDIA GeForce 8600M GT |
| Video Memory: | 128 MB | 128 MB |
| Backlight: | CCFL | LED |
| Hard Drive: | 120 GB | 120 GB |
| SuperDrive: | 6X Dual-Layer | 8X Dual-Layer |
| Est. Battery Life: | 5 Hours | 6 Hours |
| Apple Part No: | MA609LL | MA895LL |
| Original Price: | US$1999 | US$1999 |
| MacBook Pro: | Core 2 Duo 2.33 15" | Core 2 Duo Santa Rosa 2.4 15" |
|---|---|---|
| Processor Type: | 2.33 GHz "Core 2 Duo" (T7600) | 2.4 GHz "Core 2 Duo" (T7700) |
| Frontside Bus: | 667 MHz | 800 MHz |
| Standard RAM: | 2 GB | 2 GB |
| Maximum RAM: | 3 GB | 4 GB |
| Video Type: | ATI Mobility Radeon X1600 | NVIDIA GeForce 8600M GT |
| Video Memory: | 256 MB | 256 MB |
| Backlight: | CCFL | LED |
| Hard Drive: | 120 GB | 160 GB |
| SuperDrive: | 6X Dual-Layer | 8X Dual-Layer |
| Est. Battery Life: | 5 Hours | 6 Hours |
| Apple Part No: | MA610LL | MA896LL |
| Original Price: | US$2499 | US$2499 |
| MacBook Pro: | Core 2 Duo 2.33 17" | Core 2 Duo Santa Rosa 2.4 17" |
|---|---|---|
| Processor Type: | 2.33 GHz "Core 2 Duo" (T7600) | 2.4 GHz "Core 2 Duo" (T7700) |
| Frontside Bus: | 667 MHz | 800 MHz |
| Standard RAM: | 2 GB | 2 GB |
| Maximum RAM: | 3 GB | 4 GB |
| Video Type: | ATI Mobility Radeon X1600 | NVIDIA GeForce 8600M GT |
| Video Memory: | 256 MB | 256 MB |
| Backlight: | CCFL | CCFL† |
| Hard Drive: | 120 GB | 160 GB |
| SuperDrive: | 8X Dual-Layer | 8X Dual-Layer |
| Est. Battery Life: | 5.5 Hours | 5.75 Hours |
| Apple Part No: | MA611LL/A | MA897LL/A |
| Original Price: | US$2799 | US$2799 |
† Please note that unlike the 15-inch models, the 17-inch MacBook Pro Core 2 Duo "Santa Rosa" system does not use an LED-based backlit display. A higher-resolution 1920x1200 display is available by custom configuration, however.
Please refer to the Ultimate Mac Comparison feature to dynamically compare any MacBook Pro model to any other G3 or later Mac.
